PRODUCT DETAILS

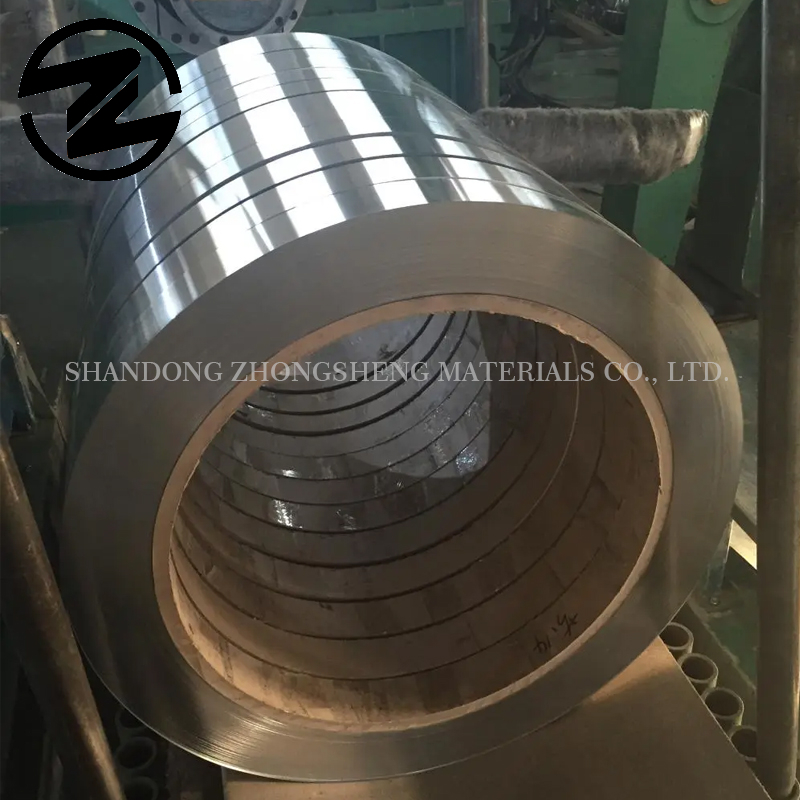

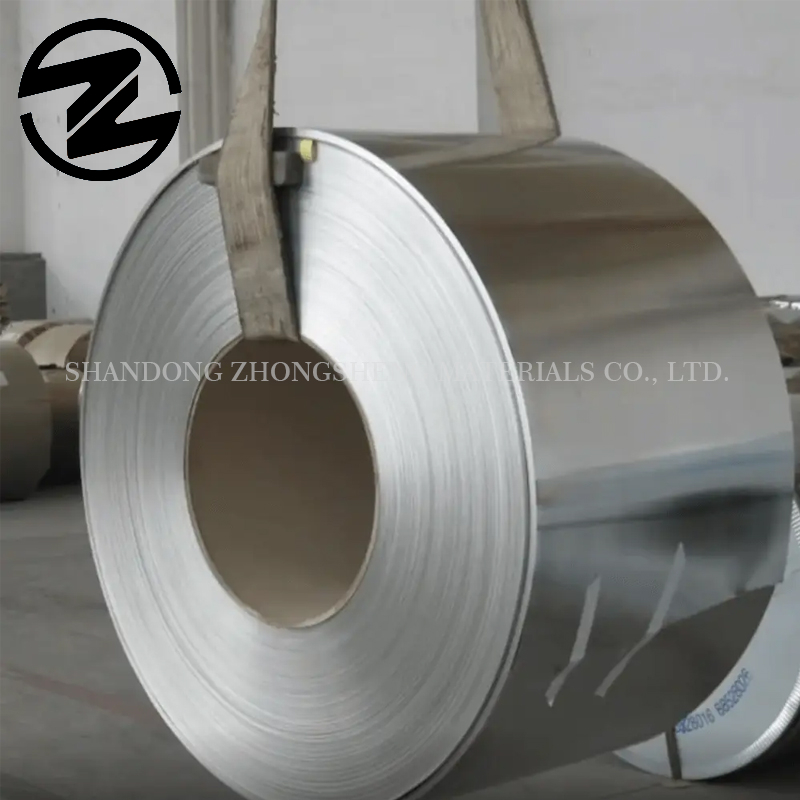

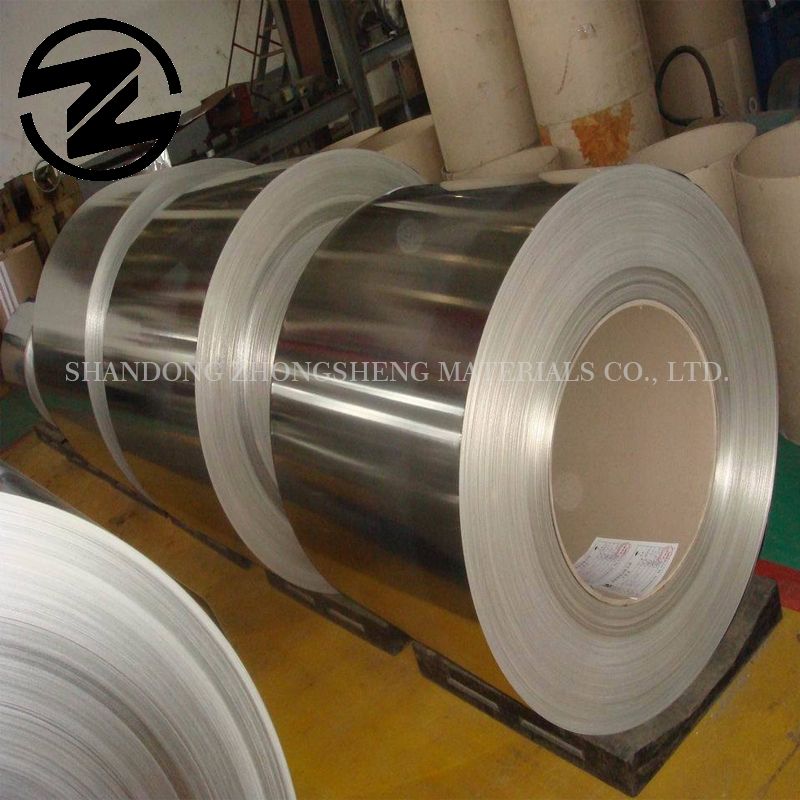

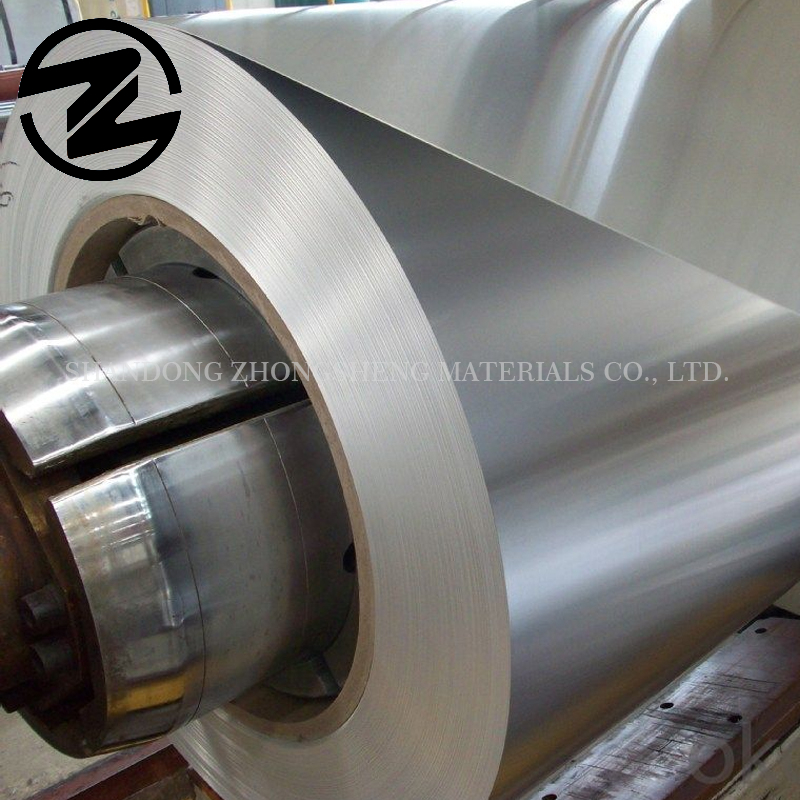

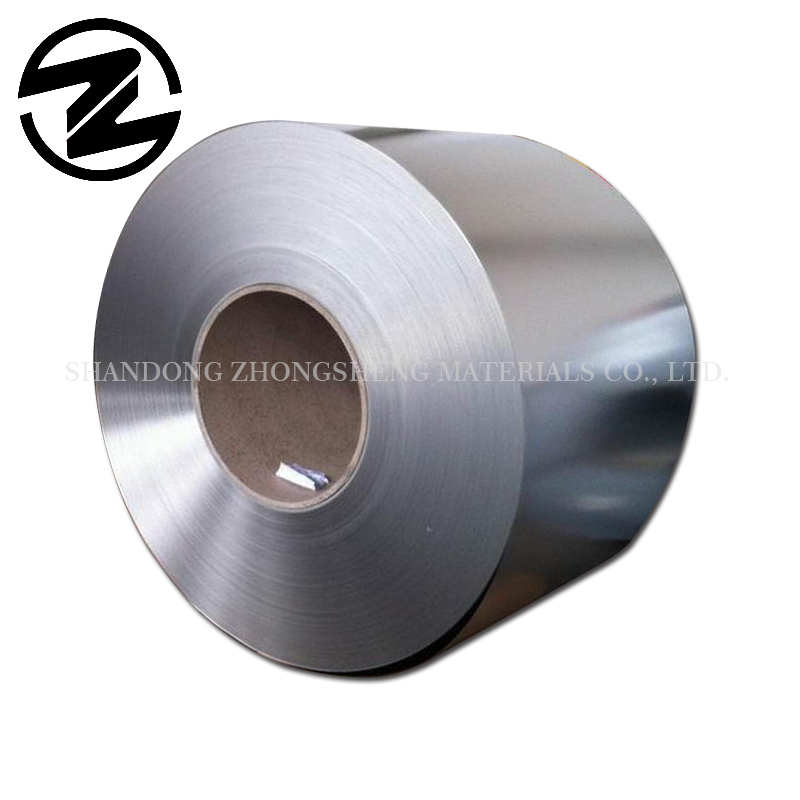

Tinplate Coil

2022-12-12

Contact Information

Phone Number: + 86 18596091786

Whatsapp Number: + 8618596091786

Landline Number: + 8618596091786

E-mail: zhongshengmetal@gmail.com

Address: Huaiyin district, Shandong province, China.

Parameter

Material Grade	SPCC, MR
Temper(BA&CA)	T1, T2, T3, T4, T5, DR8, DR9
Tin Coating	1.1~11.2g/m2
Thickness	0.15~0.50mm (Tolerance: +/- 0.01 mm)
Width	600~1050mm (Tolerance: 0~3mm)
Coil inside diameter	420/508mm
Coil Weight	1~5 MT
Surface Finish	Bright, Stone, Silver, Matte, Mirror and Color printing
Type	Designation of Tin Coating
Equal Tin Coating	1.4/ 1.42.2/ 2.22.8/ 2.85.6/ 5.68.4/ 8.411.2/ 11.2
Different Tin Coating	1.4/ 2.82.2/ 2.82.8/ 5.62.8/ 8.42.8/ 11.25.6/ 8.45.6/ 11.28.4/ 11.2
MR	Base steel low in residual elements that has excellent corrosion resistance. It is widely used in general applications.
L	Base steel extremely low in residual elements such as Cu, Ni, Co, and Mo that has excellent corrosion resistance to certain types of food products.
D	Aluminum-killed base steel used in applications involving deep drawing or other types of severe forming that tend to give rise to Lueder's lines.
